MODEL 130CBL
FEATURES

30 kV cable for HV power supplies

  • Low corona noise
  • Safely disconnects without arc-over
  • Mates to CPS 30 kV power supplies
DESCRIPTION

Model 130CBL is a high voltage coaxial cable assembly that conveys up to 30 kV between a CPS power supply and external circuitry. It has one or two high voltage connectors that are compatible with and will securely mate to several CPS power supply models. The advanced CPS-designed connector has a low corona noise, 2.75-inch center electrode that allows the cable to be safely disconnected from powered equipment without arc-over.

Two cable versions are available. Model 130CBL-01 has a CPS connector at one end and flying leads at the other end. Model 130CBL-02 has CPS connectors at both ends; this provides a convenient way to connect a high voltage power supply to a viewing block.

SPECIFICATIONS
Maximum voltage30 kV
Cable length44 inches

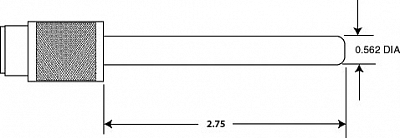

Connector dimensions (inches)

PRICES
Model Description Price Order Qty.
1 2–9
130CBL-01 30 kV cable with flying lead $332 $299
130CBL-02 30 kV cable with two connectors $575 $575
