Single output high voltage power supply: +12 kV @ 500 μA

High stability
Excellent line and load regulation
Short circuit and arc protection
Current-limited output
Compact size

PRODUCTS & RESOURCES

DESCRIPTION

Model 1561 is an obsolete product and is no longer manufactured. Product information is shown here for the benefit of customers who are still using it.

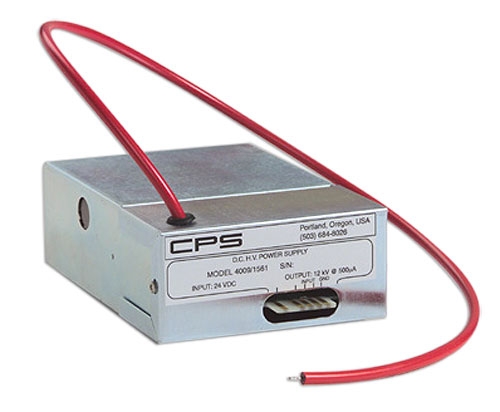

Model 1561/4009 is a high-stability electron microscope high voltage power supply. It is compact in size, featuring excellent line and load regulation.

SPECIFICATIONS

Input
Input voltage	24 VDC ± 5%
Input current	< 500 mA
Output
Output voltage	+12 kV ± 240 V
Output current	500 μA
Line regulation	0.1% for ±10% input voltage swing
Load regulation	0.05% for no load to full load swing
Output ripple	0.1% peak to peak at full load
Time stability	0.01% in 1 hour
Temperature coefficient	200 ppm/°C
General

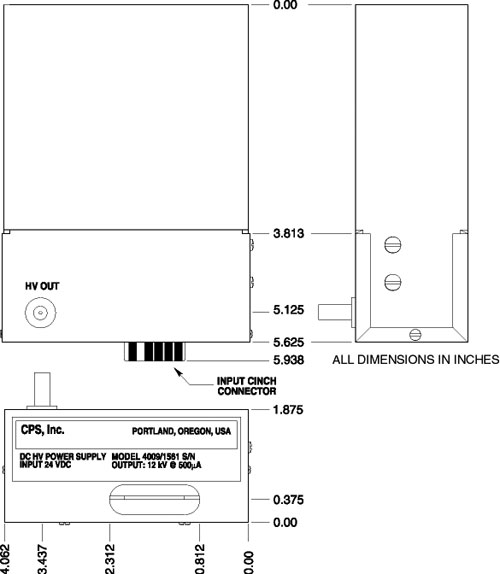

Dimensions	48 × 103 × 143 mm
High voltage connector	Flying lead
Input connector	Cinch type
