MODEL 1617
FEATURES

Triple output high voltage power supply: 18.4 to 22.5 kV, 3.0 to 5.5 kV, 270 to 330 V

  • Three output voltages: 20 kV anode, 5 kV focus, and 300 V grid
  • Low output ripple
  • Tight line and load regulation
PRODUCTS & RESOURCES
DESCRIPTION

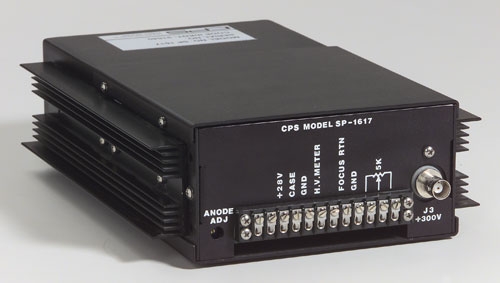

The Model 1617 is a Cathode Ray Tube (CRT) high voltage power supply with three output voltages: 20 kV, 5 kV, and 300 V. It features low output ripple and tight line and load regulation.

SPECIFICATIONS
Input
Input voltage28 VDC
Input current0.9 A
Anode Voltage
Adjustable range18.4 to 22.5 kV (by trimpot)
Line regulation< 3 V for line change of ±3 V
Load regulation< 3 V for no-load to full-load swing
Output ripple< 2 V under full load
Focus Voltage
Programmable range3 to 5.5 kV
Line regulation< 1.5 V for line change of ±3 V
Load regulation< 1.5 V for no-load to full-load change
Output ripple< 1.5 V under full load
G2 Voltage
Adjustable range270 to 330 V
Line regulation< 150 mV for line change of ±3 V
Load regulation< 150 mV for no-load to full-load change
Output ripple< 150 mV under full load
General

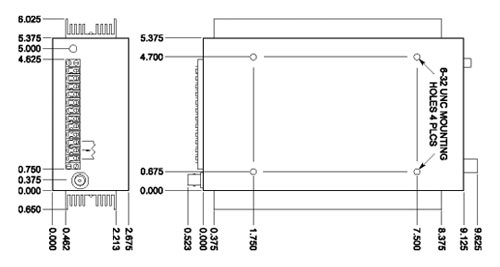

Dimensions232 × 137 × 68 mm
PRICES
Model Description Price Order Qty.
1 2–9
1617Triple output high voltage power supply: 18.4 to 22.5 kV, 3.0 to 5.5 kV, 270 to 330 VCallCall
