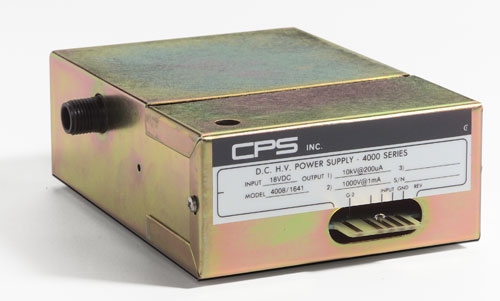

MODEL 1641/4008
FEATURES

Double output high voltage power supply: +10 kV @ 200 μA, +1 kV @ 1 mA

  • 10 kV anode output
  • G2 output
  • Static and dynamic focus output
  • Arc proof and short proof
PRODUCTS & RESOURCES
DESCRIPTION
Model 1641 is an obsolete product and is no longer manufactured. Product information is shown here for the benefit of customers who are still using it.

Model 1641/4008 is a multiple-output supply for CRT applications, providing the G2 electrode as well as the anode.

SPECIFICATIONS
Anode
Output voltage+10 kV
Output current200 μA
Line regulation10 V
Load regulation5 V
Output ripple3 V peak-to-peak
Time stability2.0 V in 8 hours
Temperature coefficient200 ppm
G2
Output voltage+1 kV
Output current1.0 mA
Line regulation1 V
Load regulation1 V
Output ripple1 V peak-to-peak
Time stability2.0 V in 8 hours
Temperature coefficient1,000 ppm
