MODEL 1844
FEATURES

Five output four-level dynamic high voltage voltage switching power supply: +8 to 17 kV @ 500μA, +3 kV, +350 to 600 V, 0 to +300 V, −3.5 V

  • Replacement for Venus Scientific beam penetration power supply
  • DESC B54E0051-2 part number
  • Rapid switching between 8 kV and 17 kV
  • Used in flight simulators
PRODUCTS & RESOURCES
DESCRIPTION
Model 1844 is an obsolete product and is no longer manufactured. Product information is shown here for the benefit of customers who are still using it.

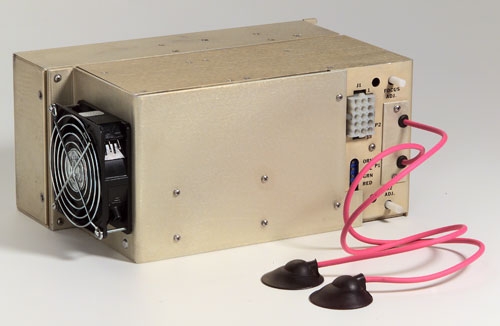

Model 1844 powers beam penetration CRTs. It may be programmed to rapidly switch among any four voltage levels between 6 kV and 17 kV. Levels are set by front panel trim adjustments; applying 5 V logic levels to the program inputs selects the preset voltages.

The 1844 has four additional output voltages: 3 kV focus, 16 kV anode, −3.5 V G1, and 525 V G2 output.

This is a legacy product that supports existing displays used for air traffic control and flight simulators. The 1844 is equivalent to those formerly made by Venus Scientific and ELDEC.

SPECIFICATIONS
Switch Anode
Input voltage±24 VDC ± 10%
Enable+5 V
Input current4 A maximum
Adjustable range8 to 17 kV
Set to8 kV: red
11 kV: orange
14 kV: yellow
17 kV: green
Load regulation17 V at 17 kV
Line regulation6.5 V at 17 kV
Ripple17 V maximum at 17 kV
Transient response0.35 ms maximum (8 to 17 kV)
Output level switch rate100 Hz minimum, 500 pF load
Output load current500 μA
Fixed Anode
Output voltage15 kV ± 200 V
Line regulation2.4 V maximum for ±10% input voltage change
Load regulation15 V max
Output ripple1.2 V peak-to-peak maximum at full load
Focus
Output voltage3 kV
Line regulation3 V maximum
Load regulation3 V maximum
Output ripple3.5 V peak-to-peak
Rise and fall time5 μs for 50 kHz modulation
Coarse adjustment range2.2 to 3.5 kV
Remote adjustment range300 V ± 10 V for 15 V programming
High voltage connectorLGH type, AMP 861252-1 or equivalent
Dynamic Focus
Input voltage0 to 5 V
Output voltage0 to 300 V
G1
Output voltage−3.5 V
Line regulation35 mV maximum
Load regulation210 mV maximum
Output ripple105 mV peak-to-peak maximum
G2
Output voltage350 to 600 V
Line regulation2.525 V maximum
Load regulation3 V maximum
Output ripple1.6 V maximum
