Five output five-level dynamic high voltage voltage switching power supply: 6 to 14 kV @ 500μA

Replacement for Venus Scientific 271 beam penetration power supply
DESC B54E0051-2 part number
Rapid switching between 6 kV and 14 kV
Used in FAA operator displays and flight simulators

PRODUCTS & RESOURCES

DESCRIPTION

Model 1848 is an obsolete product and is no longer manufactured. Product information is shown here for the benefit of customers who are still using it.

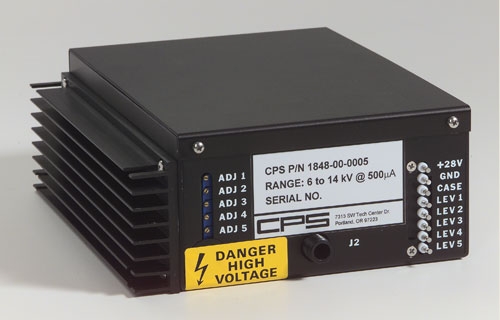

The Model 1848 powers beam penetration CRTs. It may be programmed to rapidly switch among any five voltage levels between 6 kV and 14 kV. Voltage levels are set by front panel trim adjustments. Applying logic levels to the program inputs selects the preset voltages.

The 1848 is a legacy product that supports existing displays used for air traffic control and flight simulators. It is equivalent to the Model 271 formerly made by Venus Scientific and ELDEC.

SPECIFICATIONS

Input
Input voltage	28 VDC
Line regulation	6 V at 6 kV 1.4 V at 14 kV
Output
Default output levels	1 = 6.0 kV 2 = 7.5 kV 3 = 9.0 kV 4 = 10.5 kV 5 = 12.0 kV
Output current	500 μA
Output level switching rate	100 Hz minimum at 500 μA load
Load regulation	6 V at 6 kV 14 V at 14 kV
Output ripple	14 V peak-to-peak at 14 kV
Transient response	< 0.4 ms rise/fall time (6 to 14 kV) < 0.4 ms rise/fall time (6 to 10 kV)
General

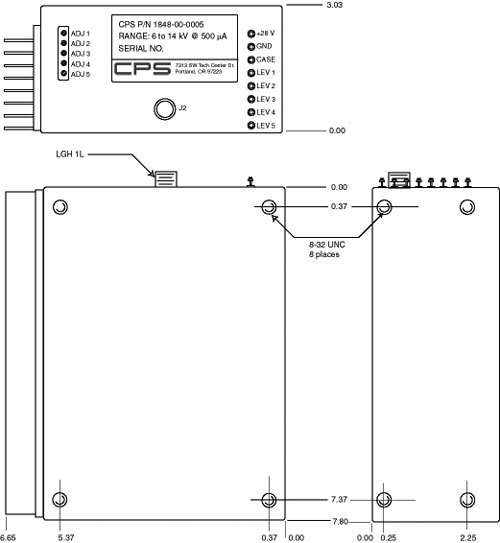

Dimensions	6.6 × 3.0 × 7.8 in.
