MODEL 3604
FEATURES

Triple output high voltage power supply: −30/−50 kV @ 300 μA, 0 to +10 kV @ 200 μA, 0.1 to 5 A

  • Accelerator output +50 to +50 kV or −50 to −50 kV
  • Output ripple under 100 mV at full load
  • Temperature coefficient under 300 ppm/°C
  • Stored energy under 1 J
  • Low reflected ripple on input power line
  • Rack-mountable
  • Commonly used with electron probes and similar applications
DESCRIPTION

Model 3604 contains three common high voltage power supplies used by scanning electron microscopes (SEM) within a compact 25 × 15 × 20 cm enclosure. The filament and bias voltages float on the accelerator voltage; all three are remotely programmable via the RS-232 data port. Connection to a SEM occurs through a conventional 3-pin Federal Standard connector. A plug-in terminal block connects 24 VDC input power, an external safety interlock, and a ″HV On″ status bit.

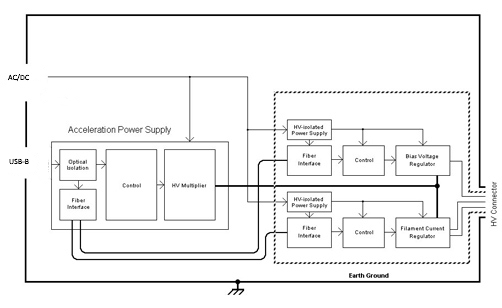

Functional block diagram

Model 3604 functional block diagram

Two status lights show serial communication activity and a heartbeat lamp indicates that the processor of the 3604 is active.

The bias voltage is derived from the accelerator supply and controlled by an electronically programmable Wehnelt resistor.

Software

A Legacy C-language demo program allows control over all supplies and reports communication activity. It displays the set-point of each supply and the actual measured outputs. Internal temperatures of the individual power supplies are also displayed.

A newer Visual Basic Demo program is also available with the same functionality as the Legacy software. It works with new units that come pre-configured with configuration settings embedded within the unit itself. No external .ini configuration files are needed.

Demo program

ACCESSORIES

Cables

PN Image Description
3603CBL 3-conductor, high voltage output cable (included with model 3604).
SPECIFICATIONS
Acceleration Voltage
Output voltage range−500 VDC to −30 kVDC
Output current300 μA
Output ripple and noise< 300 mV
Output temperature drift10 ppm/hour
Programmable step size1 ppm
Wehnelt
Output voltage range0 to −2 kVDC
Output current200 μA
Programmable resolution1 ppm
Stability50 ppm/hour
Ripple and noise< 1 V
Filament
Output voltage0 to 5 VDC
Output current0 to 3 A
Output ripple< 10 mV
Output temperature drift100 ppm/hour
Programmable resolution1 ppm
Communication
ConnectorDB9 male
Signal levelsRS-232 or USB with special cable
Bit rate57 kbit/sec
Isolation1 kVDC maximum
Environmental
Temperature range, operating10 to 35 °C
Temperature monitorInside floating HV section
General
Input power24 VDC ± 1.5 V, 3 A
Interlock circuitClosed contact enables HV
Dimensions10.0 × 7.5 × 4.5 in. (254 × 190 × 114 mm)
Weight11 lb (5 kg)
Output connector3-pin CA1-type Claymount
Input terminal blockRequires 6-pin Phoenix Contact 1803617
DOWNLOADS
Software - Legacy
Legacy Windows SDKGraphical UI and DLL for Model 3604
Documentation - Current
Windows API manualAPI Documentation for latest SDK
Software - Current
Windows SDK 1.3.0Model 2600/3601-3604 Software Kit for Windows.
Uses DLL middleware to control the latest supplies that have embedded calibration data.
(no external .ini file needed for operation)
Windows SDK 2.2.0Model 2600/3601-3604 Software Kit for Windows.
Uses DLL middleware to control the latest supplies that have embedded calibration data.
(no external .ini file needed for operation)
Windows SDK 2.3.0Model 2600/3601-3604 Software Kit for Windows.
Uses DLL middleware to control the latest supplies that have embedded calibration data.
(no external .ini file needed for operation)
Windows SDK 2.4.0Model 2600/3601-3604 Software Kit for Windows.
Adds support for LENS calibrated supplies
