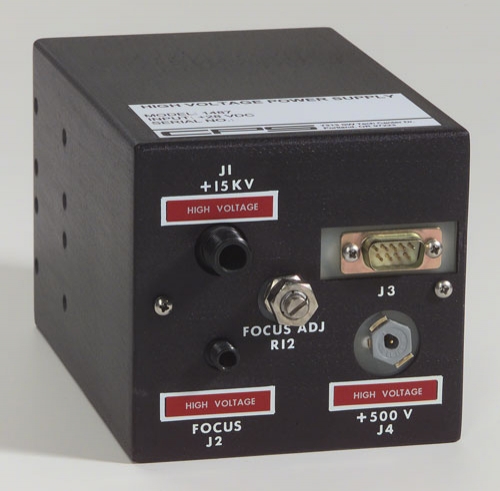

MODEL 1487
FEATURES

Triple output power supply: 14.7 to 15.3 kV @ 200μA, 3.2 to 5.3 kV @ 250μA, 500 V @ 50μA

  • Triple outputs (15.3 kV anode, 5.3 kV focus and 500 V grid)
  • All outputs adjustable
  • Low line and load regulation of high voltage outputs
  • All outputs short circuit and arc protected
  • Remotely programmed shutdown for each output
  • All outputs current limited
  • Compact size: 6 × 4 × 4 inches
  • DB-9 I/O connector
DESCRIPTION
SPECIFICATIONS
General
Input voltage28 VDC ± 10%
Input current< 300 mA
Load regulation1.4% for no load to full load swing
Output ripple< 2.5 V peak to peak at full load
Time stability0.01% in 1 hour
Temperature coefficient200 ppm/°C

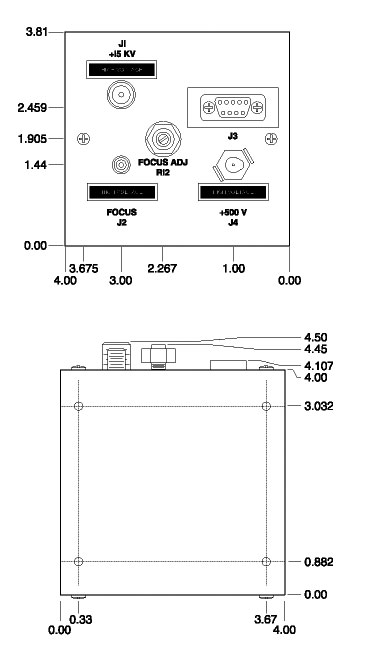

Dimensions6 × 4 × 4 inches
Anode
Output voltage14.7 to 15.3 kV
Output current200 μA
Output connectorCPS 130CBL compatible
Program voltage5 V in for 20 kV output
Voltage monitor40 u or 5 V for 20 kV output
Current monitor5 V for 300 μA output
Line regulation0.1% for ±10% input voltage swing
Load regulation0.1% for no load to full load swing
Output ripple< 7.5 V peak to peak at full load
Time stability0.01% in 1 hour
Temperature coefficient200 ppm/°C
High voltage connectorLGH type (AMP 861253-1 or equivalent)
Focus
Output voltage3.2 to 5.3 kV (potentiometer-adjustable)
Output current250 μA
Line regulation0.1% for ±10% input voltage swing
Load regulation
Output rippleLess than 15 V peak to peak at full load
Time stability0.01% in 1 hour
Temperature coefficient200 ppm/°C
High voltage connectorLGH type (AMP 861253-1 or equivalent)
G2
Output voltage500 V
Output current50 μA
Line regulation1% for ±10% input voltage swing
PRICES
Model Description Price Order Qty.
1 2–9
1487 Triple output power supply: 14.7 to 15.3 kV @ 200μA, 3.2 to 5.3 kV @ 250μA, 500 V @ 50μA $1,663 $1,512 Call
130CBL-01 30 kV cable with flying lead $332 $299
130CBL-02 30 kV cable with two connectors $575 $575
